600V Single Phase Copper conductor concentric cable 3x4AWG

  • 600V Single Phase Copper conductor concentric cable 3x4AWG
  • 600V Single Phase Copper conductor concentric cable 3x4AWG
  • 600V Single Phase Copper conductor concentric cable 3x4AWG
  • 600V Single Phase Copper conductor concentric cable 3x4AWG
Model No.︰SEU
Brand Name︰HESHENG
Country of Origin︰China
Unit Price︰US $ 2 / meter
Minimum Order︰1000 meter
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

600V Single Phase Copper conductor concentric cable 3x4AWG



Specifications

Rated voltage: 600/1000V

Code: SER/SEU

Insulation: XLPE

Sheath: PVC

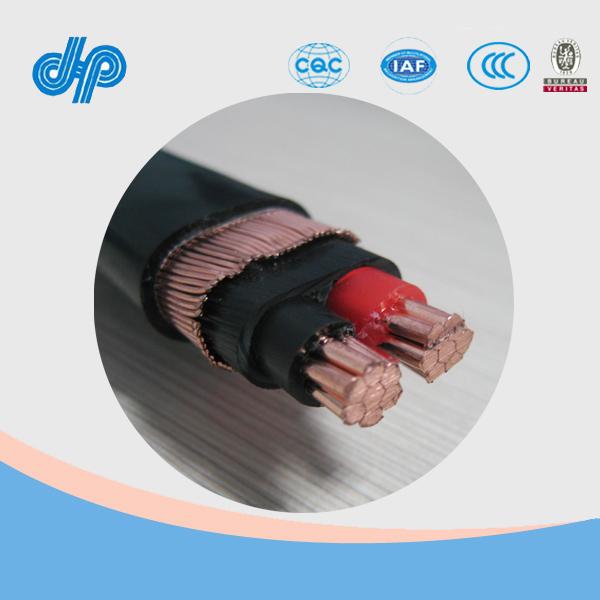

The insulated conductors in SEU cable are phaseidentified. One conductor has a single longitudinal red strip while the second is all black. The bare conductor strands are then helically wound around the two paralleled insulated conductors then wrapped with a glass-reinforced tape. The PVC jacket is then extruded over the assembly for a completed product.



Product Features

• Environmentally friendly because the PVC jacket is lead-free and cadmium-free.

• 90 degree-rated insulation which provides superior product quality.

• Increased flexibility because every piece of Service Entrance Cable is made with Stabiloy AA-8030 conductor (#8 is solid, all others are stranded) and cross-linked polyethylene insulation (XLPE).

• Tristriping which improves the visibility of the grounded conductor.

• Sequential footage marking which ensures measurement accuracy every time.

• Sunlight resistant moisture resistant and flame retardant jacket which enhances the life of the cable by ng off environmental elements that can cause deterioration.

Payment Terms︰T/T, L/C at sight
